SAG Correction System (Patented)
Remove sags or low spots in PVC sewer lines from inside the pipe
- Removes sags or low spots in PVC sewer lines from inside the pipe
- Excavation is not required. Costs are at a fraction of the price!
- Our machine is very versatile with multiple size-pipe adapters: 8", 10", 12", 15" and 18".
How It Works

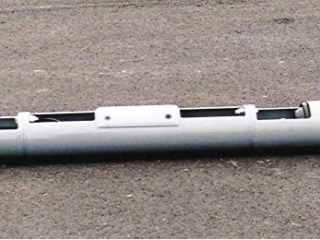

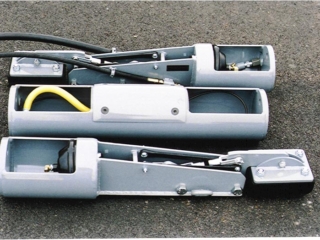

The three sections of the sag remover are assembled inside a manhole. Two air hoses are connected. One to supply a pneumatic powered vibrator and one to power the lift mechanism.

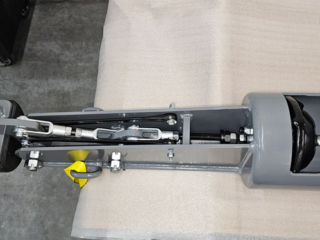

After the machine is positioned in the sag, lift pressure is applied. This forces the center section, which contains the vibrator, against the top of the pipe. The combination of lift pressure and vibration will raise the pipe.

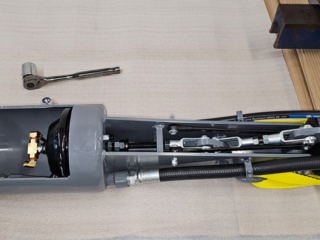

Some of the lifting power comes from the centrifugal force of the vibrator. The rubber isolator pads at the ends of the machine and the air suspension of the lift mechanism prevents this vibration energy from transfering downward.
Intense high frequency vibration allows the surrounding granular bedding material to flow from above the pipe to underneath, as the pipe is lifted.
Sags of any length can be removed by moving the machine in increments and lifting along the length of the sag. Deeper sags will require multiple passes.
With most bedding materials, it will likely be necessary for the material to be wet to be able to flow underneath the pipe.
See the SAG in Action
Before Video
Identifying low spot in sewer pipe.
Sag Machine Working Video
POV shot: Working inside the pipe using vibration technology.
After Video
Results from the sag removal using Advanced Construction Products' Sag Correction System.
Footage courtesy of Atlantic Pipe Services (Sanford, Florida)
If No Ground Water Present
If there is no ground water present, it may be necessary add water to the bedding material.

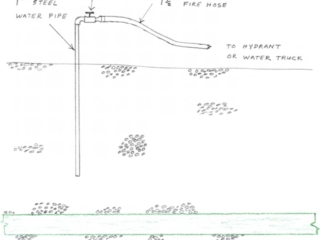

We recommend applying water with something similar to the jet pipe shown. With water flowing, the pipe should be able to be pushed into the backfill by hand.
If covered with pavement, a core drill like those used to take asphalt test cores, can be used to access the jet pipe.

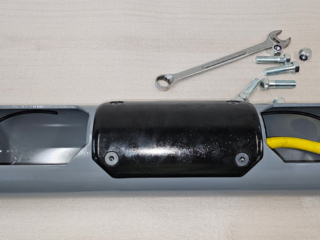

8 Inch Pipe Adapter

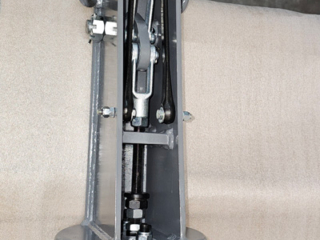

The 8 inch pipe adapter bolts to the center section of the sag machine. It allows the machine to lift above parallel when removing sags longer than the span of the machine.
It is replaced with other pipe adapters for larger diameter pipes.
Specifications
- Length: 104 inches overall assembled.
- Lifting span: 96 inches center to center of the lifting pads.
- Weight: 65 to 70 lb. for end sections, 93 lb. for center section, aprox 230 lb. total.
- Air consumption: 70 CFM @ 80 - 100 PSI.
Product List - Contact Us for Pricing
- SR812 - sag remover, 8 inch pipe adapter, tow slings, hose towing adapter
- Multiple size pipe adapters: 8", 10", 12", 15" and 18".
- Air swivel, oiler, filter & whip hose assembly
- Pipe Roller
- Spare Parts Kit
- Vibrator Rebuild Kit
